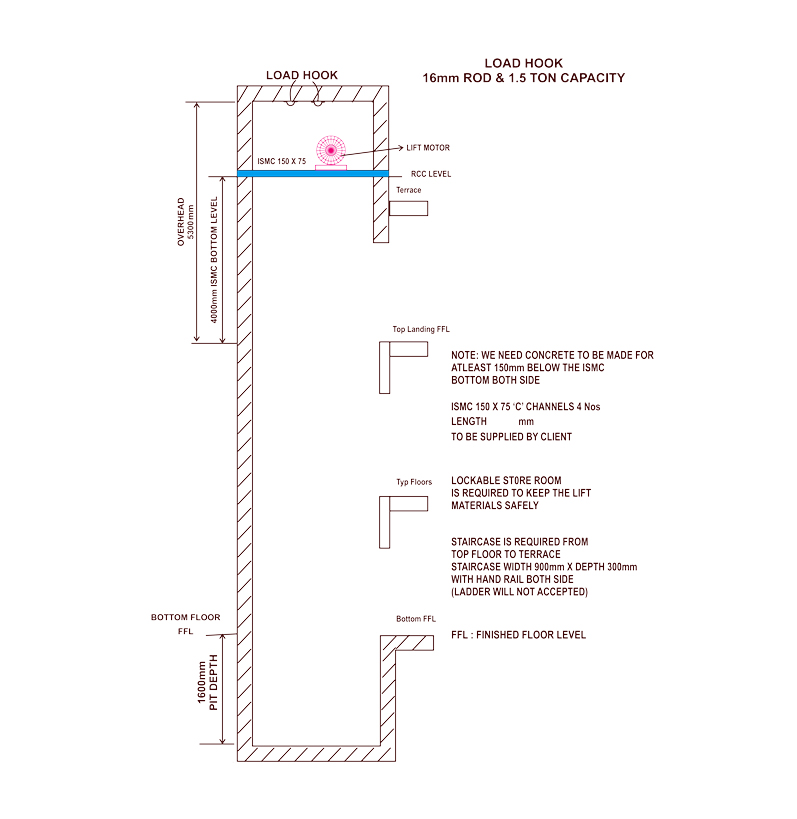

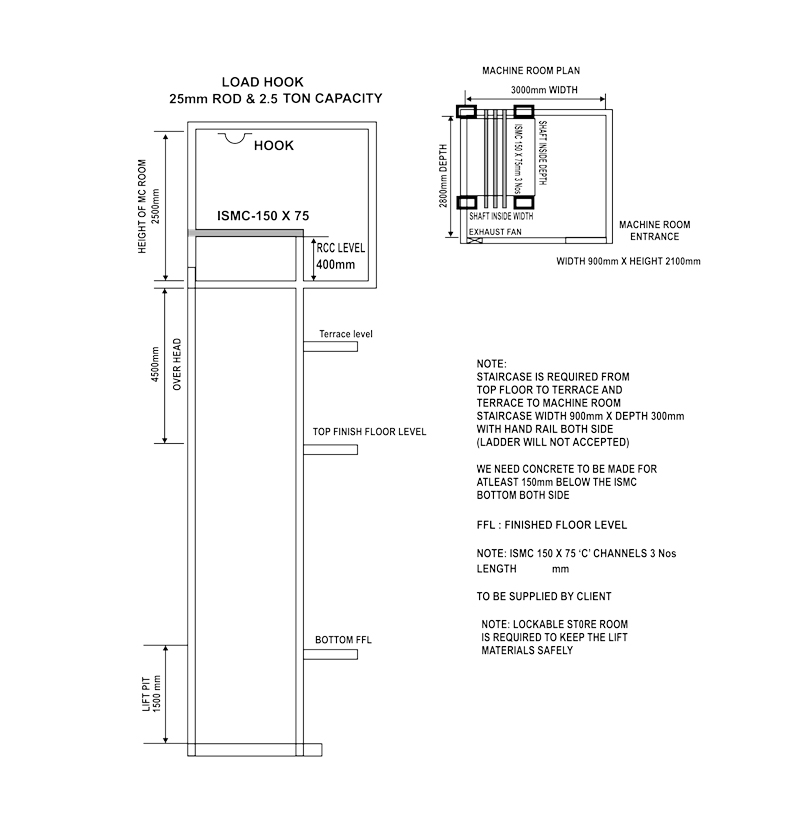

planning guide

CAPACITY		SPEED	CAR INSIDE		ENTRANCE		LIFT WELL	PIT	O/H	MACHINE ROOM
Pax	Load (Kg)		Width x Depth	Height	Width	Height	Width x Depth			Width	Depth	Height
4	272	0.65 to 1 m/sec.	1050 x 735	2150	700	2000	1600 x 1350	1600	4500	2600	3550	2500
5	340		1100 x 875	2150	700	2000	1600 x 1500	1600	4500	2600	3550	2500
6	408		1100 x 1000	2150	700	2000	1600 x 1600	1600	4500	2600	3550	2500
7	476		1200 x 1000	2150	800	2000	1800 x 1600	1600	4500	2800	3750	2500
8	544		1300 x 1100	2150	800	2000	1800 x 1700	1600	4500	2800	3750	2500
9	612		1300 x 1200	2150	800	2000	1800 x 1800	1600	4500	2800	3750	2500
10	680	1.0 to 1.5 m/sec.	1350 x 1300	2250	800	2000	1800 x 1900	1800	4800	2800	4000	2500
11	748		1400 x 1400	2250	800	2000	1850 x 2000	1800	4800	2850	4000	2500
12	816		1850 x 1100	2250	1000	2100	2300 x 1750	1800	4800	3500	4000	2500
13	884		2000 x 1100	2250	1000	2100	2450 x 1750	1800	4800	3500	4000	2500
14	952		2000 x 1200	2250	1000	2100	2450 x 1900	1800	4800	3500	4000	2500
16	1088	1.5 to 2.5 m/sec	2000 x 1300	2250	1100	2100	2450 x 2000	2200	4800	3500	4000	2500
18	1224		2000 x 1450	2250	1100	2100	2500 x 2250	2200	4800	3500	4500	2500
20	1360		2000 x 1550	2250	1100	2100	2500 x 2350	2200	4800	3500	4500	2500
22	1496		2000 x 1650	2250	1100	2100	2500 x 2450	2200	4800	3500	4500	2500

CAPACITY		SPEED	CAR INSIDE		ENTRANCE		LIFT WELL	PIT	O/H	MACHINE ROOM
Pax	Load (Kg)		Width x Depth	Height	Width	Height	Width x Depth			Width	Depth	Height
4	272	0.65 to 1 m/sec.	1050 x 735	2150	700	2000	1450 x 1300	1600	4500	2600	3550	2500
5	340		1100 x 875	2150	750	2000	1500 x 1400	1600	4500	2600	3550	2500
6	408		1100 x 1000	2150	750	2000	1500 x 1525	1600	4500	2600	3550	2500
7	476		1200 x 1000	2150	800	2000	1600 x 1525	1600	4500	2800	3750	2500
8	544		1300 x 1100	2150	800	2000	1700 x 1625	1600	4500	2800	3750	2500
9	612		1300 x 1200	2150	800	2000	1700 x 1725	1600	4500	2800	3750	2500
10	680	1.0 to 1.5 m/sec.	1350 x 1300	2250	900	2100	1750 x 1850	1800	4800	2800	4000	2500
11	748		1400 x 1400	2250	900	2100	1800 x 1950	1800	4800	2850	4000	2500
12	816		1850 x 1100	2250	1100	2100	2250 x 1675	1800	4800	3500	4000	2500
13	884		2000 x 1100	2250	1200	2100	2425 x 1675	1800	4800	3500	4000	2500
14	1050		2000 x 1200	2250	1200	2100	2425 x 1775	1800	4800	3500	4000	2500

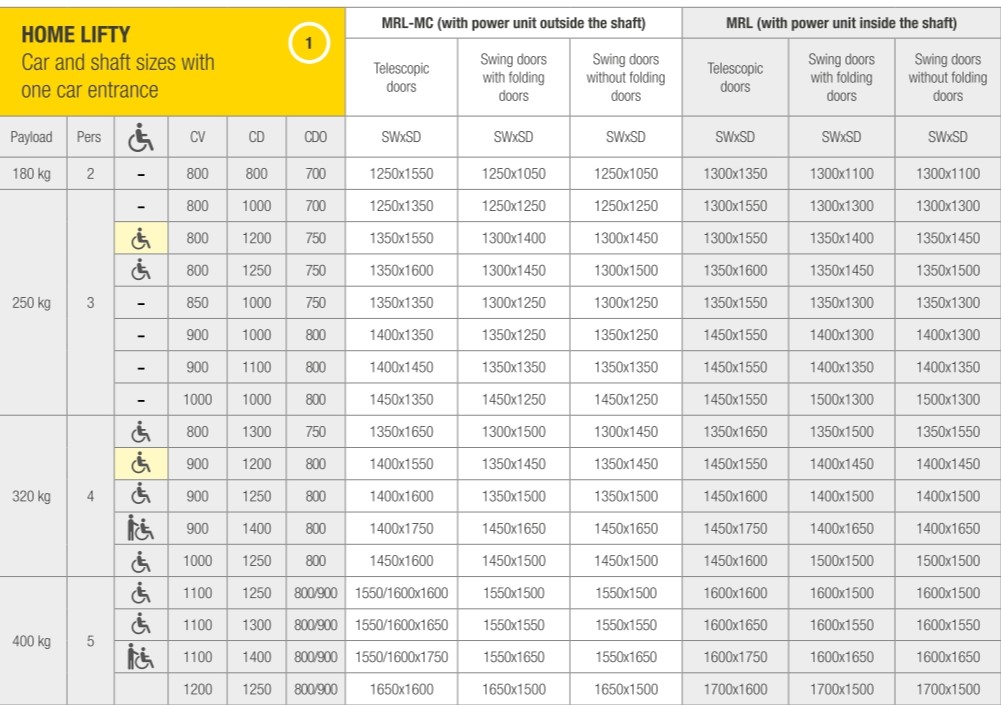

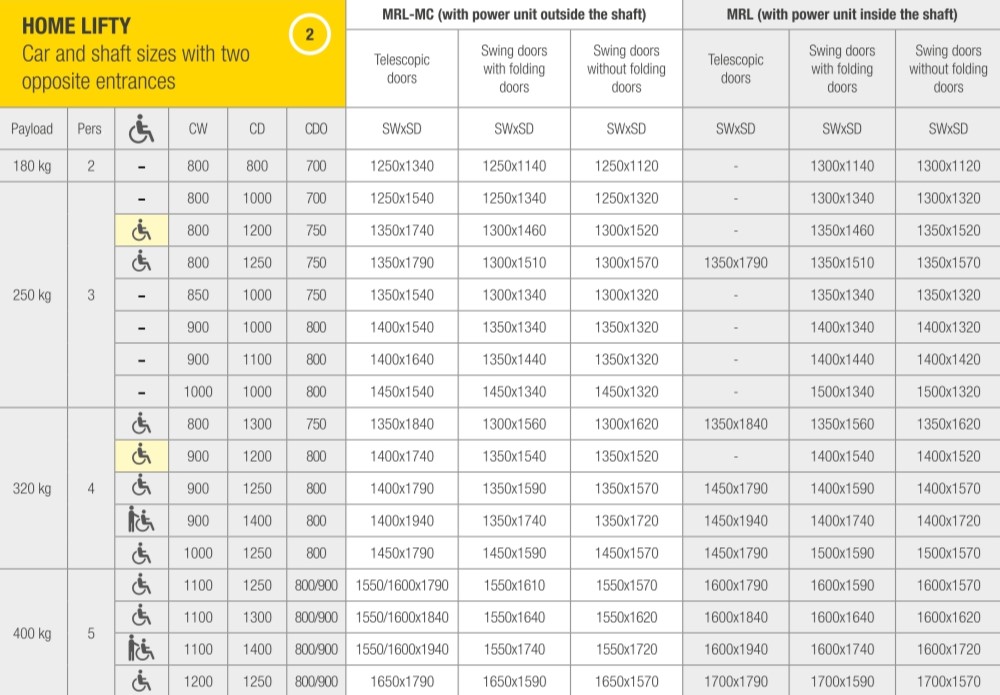

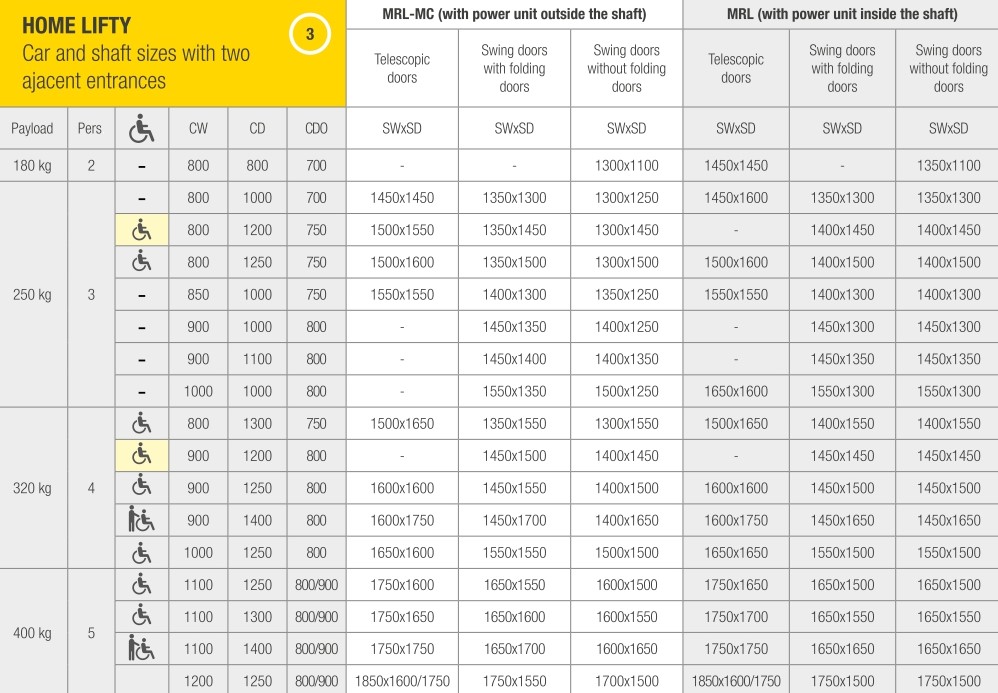

TECHNICAL FEATURES
Suspension	2:1
Payload	180 Kg ÷ 400 Kg
Max. n° of passengers	5
Max. number of stops	8
Max. travel	14 m
Max. speed	0,15 m/s *
Motor power	1,5 – 2,6 kW
Min. pit	150 mm
Min. headroom	2500 mm ÷ 2700 mm
Lift car (standard sizes)	(width) 800: 1200 mm; (depth) 800: 1400 mm
Cabinet (optional)	E type, Easy 400 type or HL compact power unit with controller cabinet (dimensions: 350 mm × 260 mm × 2000 mm – length × width × height)
